Batch size and throughput
Clarify target batch volume, cycle time and annual throughput. Rotovap and reactor sizing flow directly from these numbers.
Products
Complete equipment line for extraction, synthesis and purification.
Nine core product families covering solvent recovery, low-temperature processing, high-vacuum distillation, centrifugation and drying — specified for cannabis, pharmaceutical, essential oil and chemistry workflows.
Categories
Product portfolio
Each category can be configured around your batch size, voltage, certification requirements and downstream integration needs.Rotary Evaporators
R Series rotary evaporators from 5L to 50L, featuring Teflon/fluororubber dual spin seals, automatic lifting, LCD control and explosion-proof options.
- 5L - 50L flask sizes
- PTFE dual spin seal
- Automatic lifting
- Explosion-proof option
Jacketed Glass Reactors
Single and jacketed glass reactors from 1L to 100L in GG17 borosilicate glass, with PTFE anchor stirrers, digital speed display and explosion-proof configurations.
- 1L - 100L capacity
- GG17 borosilicate glass
- PTFE anchor stirrer
- −80 °C to +200 °C jacket
Recirculating Chillers
DLSB series low-temperature coolant circulation chillers from −30 °C to −120 °C, with plate heat exchange, hermetic compressors and customizable voltage.
- −30 °C / −40 °C / −80 °C / −120 °C
- 10 L/min - 180 L/min
- Plate heat exchanger
- Single and three-phase

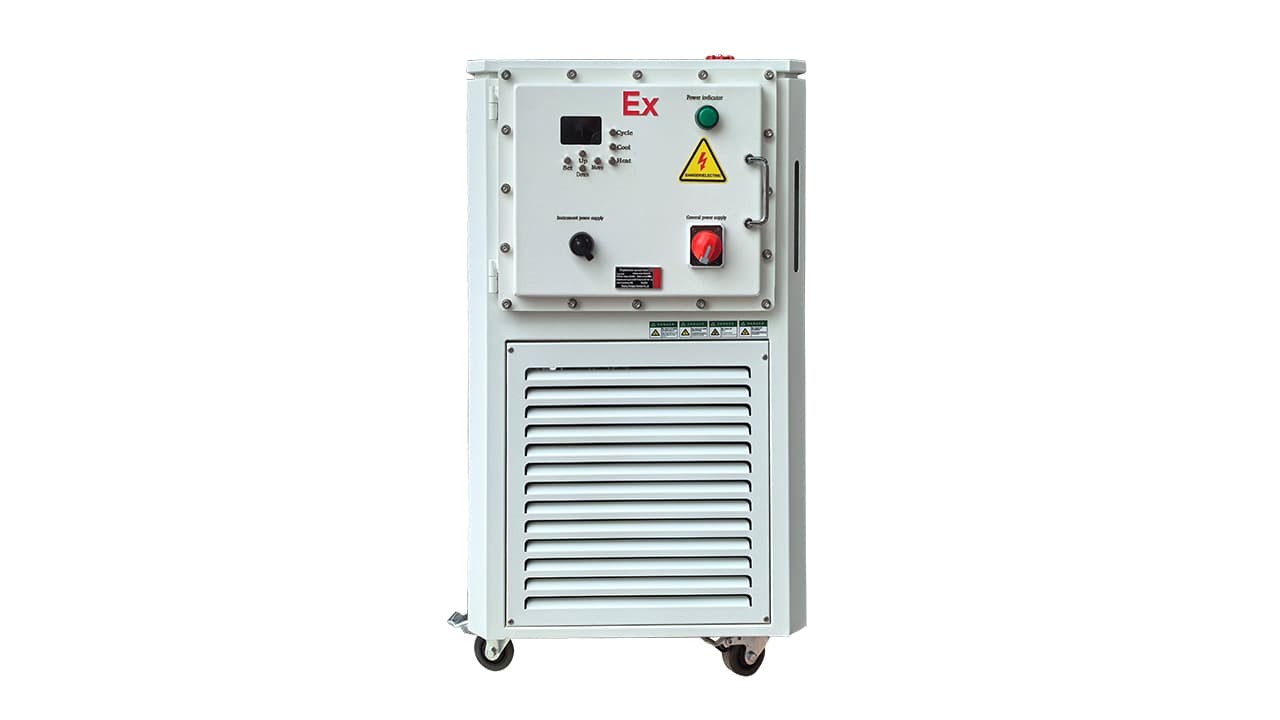

Chiller & Heater (Heating / Cooling Circulator)
GDX dual-circulation chiller/heater units from −100 °C to +200 °C, combining refrigeration, heating and pre-cooling in one integrated system.
- −100 °C to +200 °C
- PLC touchscreen
- Explosion-proof option
- 220V and 380V

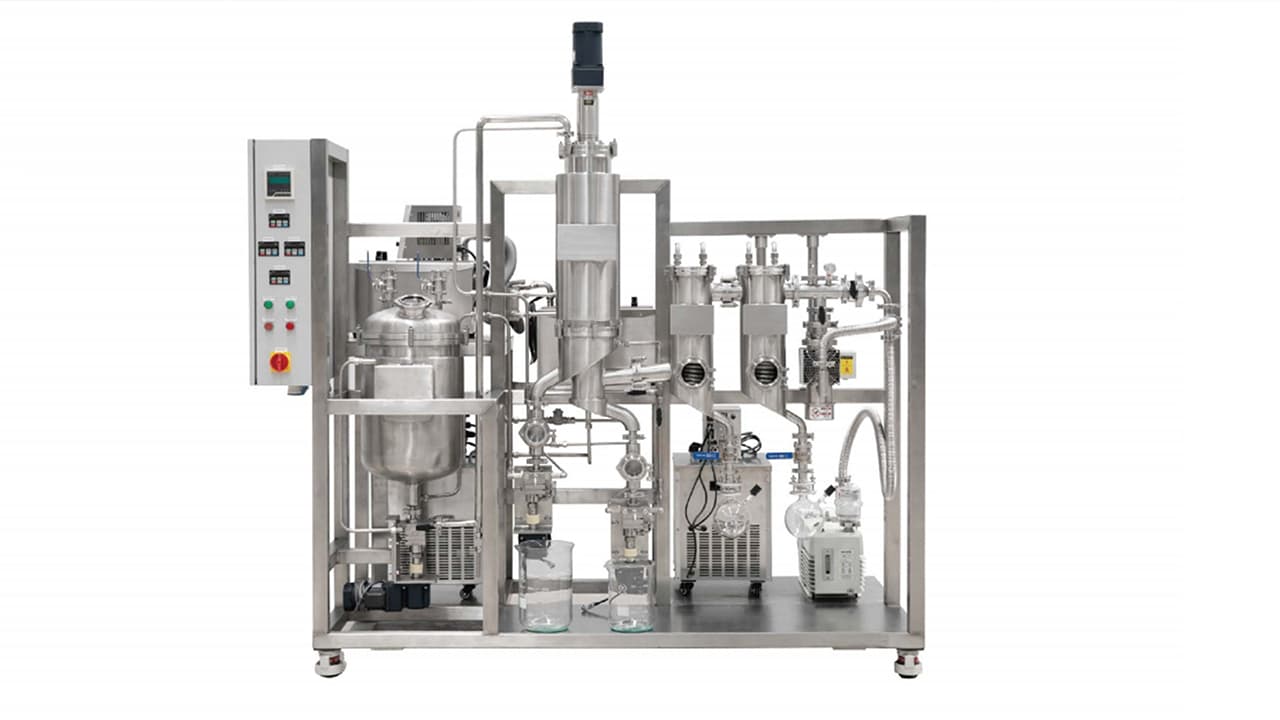

Molecular Distillation Systems
FMD short-path wiped-film molecular distillation systems from 0.05 m² to 0.5 m² evaporation area, for heat-sensitive high-value botanicals and pharma intermediates.
- 0.05 - 0.5 m² evaporation area
- SS304 frame, borosilicate glass
- Included chiller and heater
- 1-20 kg/h processing

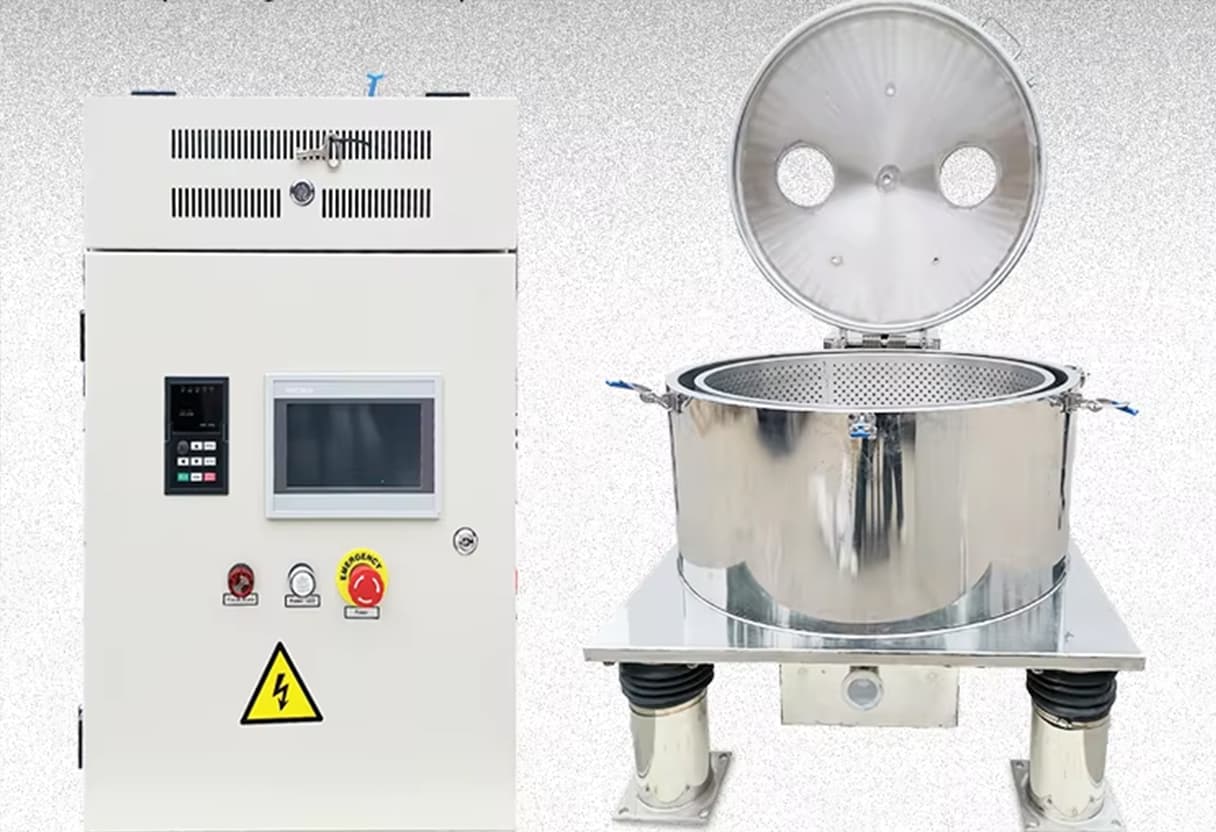

Centrifuges
SZ series sanitary plate centrifuges from 300 mm to 1000 mm basket diameter, with PLC control, variable frequency drive and jacketed cooling.
- 300 - 1000 mm basket
- 700 - 1200 rpm
- SS304 sanitary construction
- PLC touchscreen

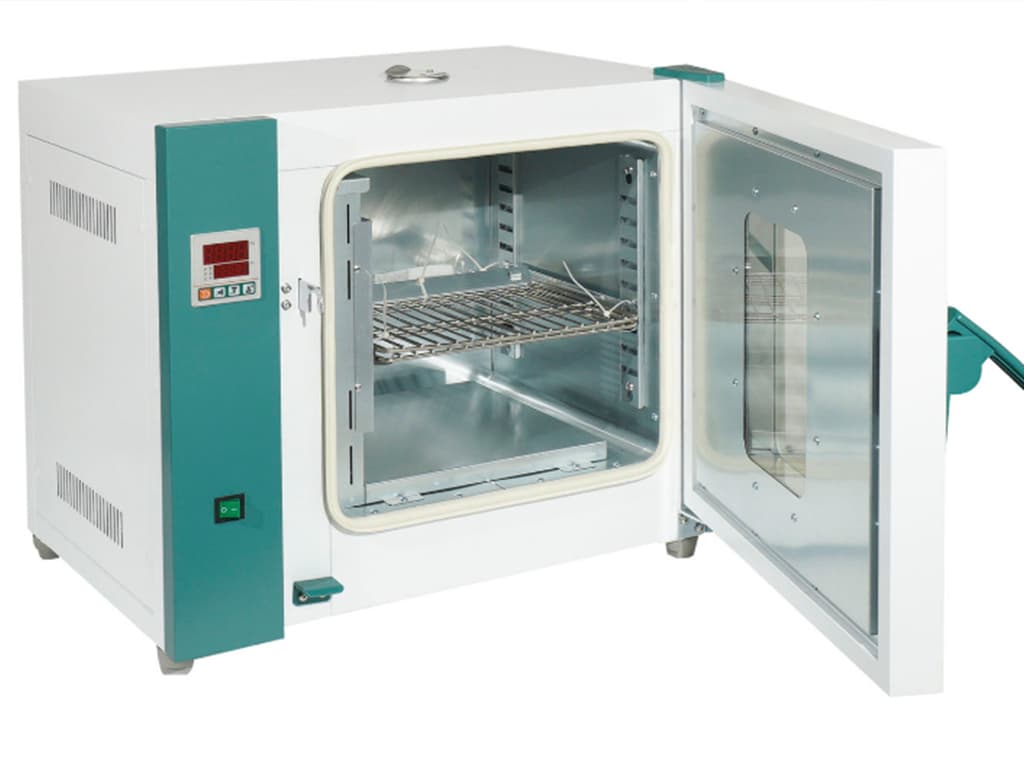

Vacuum & Forced-Air Drying Ovens
DZF vacuum drying ovens and DHG forced-air drying ovens from 8L to 960L, with 304 stainless steel chambers and digital PID control.
- Vacuum (DZF) and forced air (DHG)
- 8L - 960L chamber
- RT+10 to 300 °C
- PID temperature control

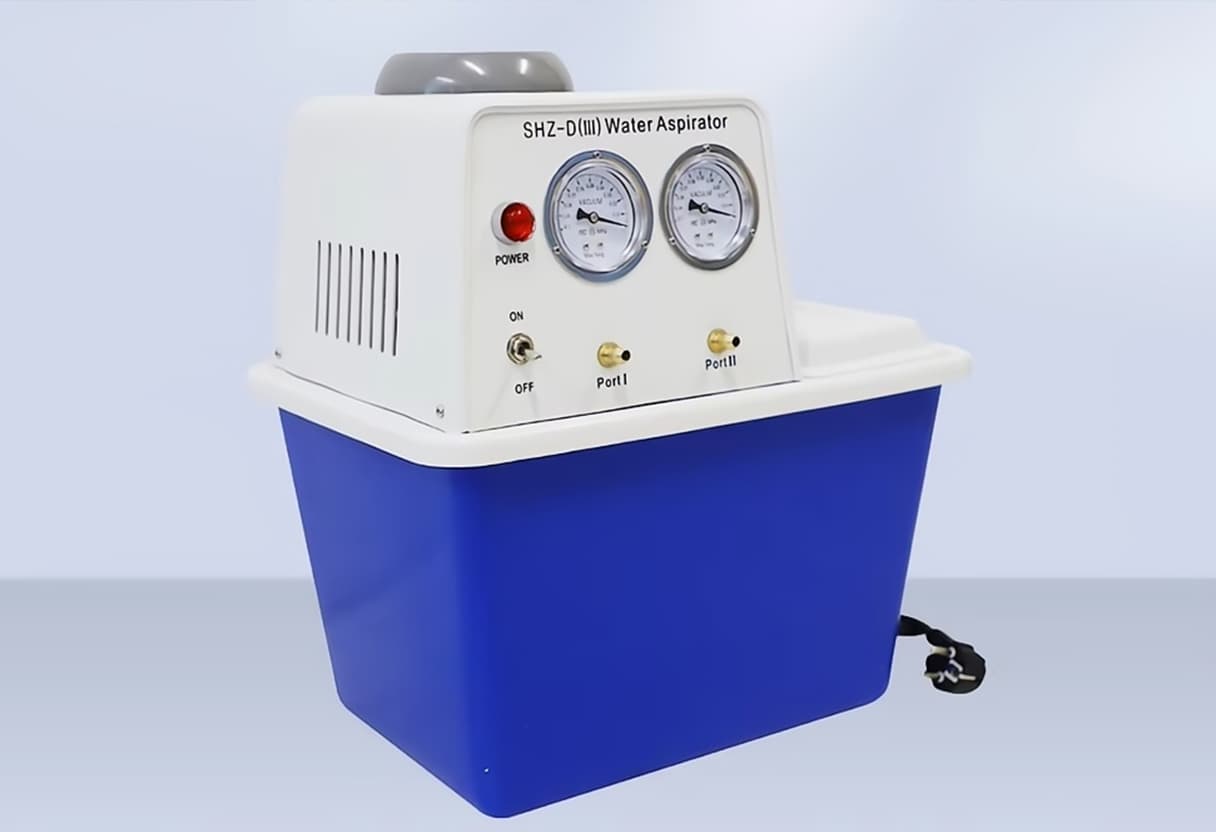

Circulating Water Vacuum Pumps
SHZ and SHB series water-powered vacuum pumps with 2 to 5 independent taps, 0.098 MPa max vacuum, anti-corrosion construction and recirculating water design.
- 2 / 4 / 5 vacuum taps
- 0.098 MPa max vacuum
- PTFE valves
- 15L - 50L reservoir

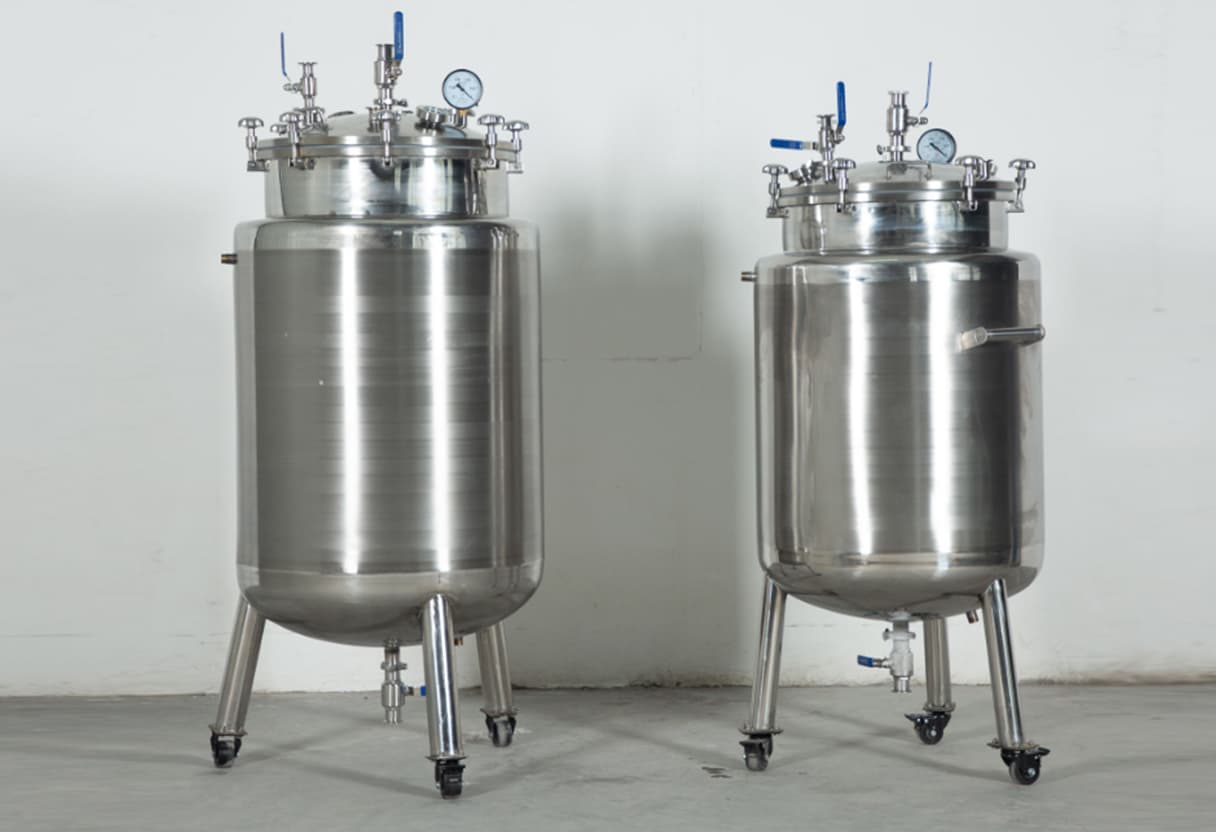

Stainless Steel Depositing Tanks
DJT series sanitary SS304 depositing and storage tanks from 150L to 1000L, with optional jacket, insulation and mobile casters for buffer storage.
- 150L - 1000L capacity
- SS304 construction
- Jacketed / insulated options
- Sanitary finish
How We Help You Specify
Matching equipment to your process
Lab equipment decisions are easier when you think in terms of batch size, voltage, hazardous location rating and downstream workflow fit.Facility voltage and hazloc
Confirm 110V / 220V / 380V supply and whether the installation is C1D1, C1D2 or non-hazardous — this determines explosion-proof spec.
Workflow integration
Reactors pair with chiller/heaters, rotovaps pair with chillers and vacuum pumps. We recommend matched combinations to avoid bottlenecks.
